- HYW-200F liquid filter cooler is designed for Huayuan LGK-HD and LGK-IGBT series plasma cutting machine which ≤ 200A
- HYW-200F/400D cooler have strong cooling power with filter function, can communicate the signal with LGK series plasma cutting machine, if there is over-heating and low liquid level, the LGK plasma cutting machine will be forced to stop working, highly reduce the plasma torch spares consumption
- Only if work with those Huayuan water cooler, the LGK series plasma cutting machine can work perfectly

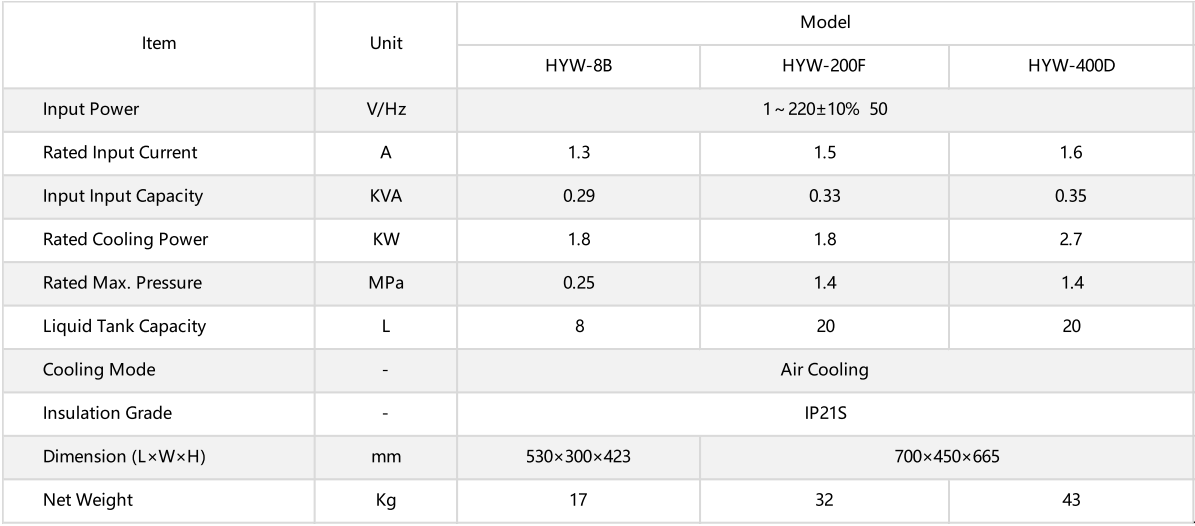

| Item | Unit | Model |
| HYW-200F | ||
| Input Power | V/Hz | 1 ~ 220±10% 50 |
| Rated Input Current | A | 1.5 |
| Input Input Capacity | KVA | 0.33 |
| Rated Cooling Power | KW | 1.8 |
| Rated Max. Pressure | Mpa | 1.4 |
| Liquid Tank Capacity | L | 20 |
| Cooling Mode | - | Air Cooling |
| Insulation Grade | - | IP21S |
| Dimension (L×W×H) | mm | 700×450×665 |
| Net Weight | kg | 32 |
